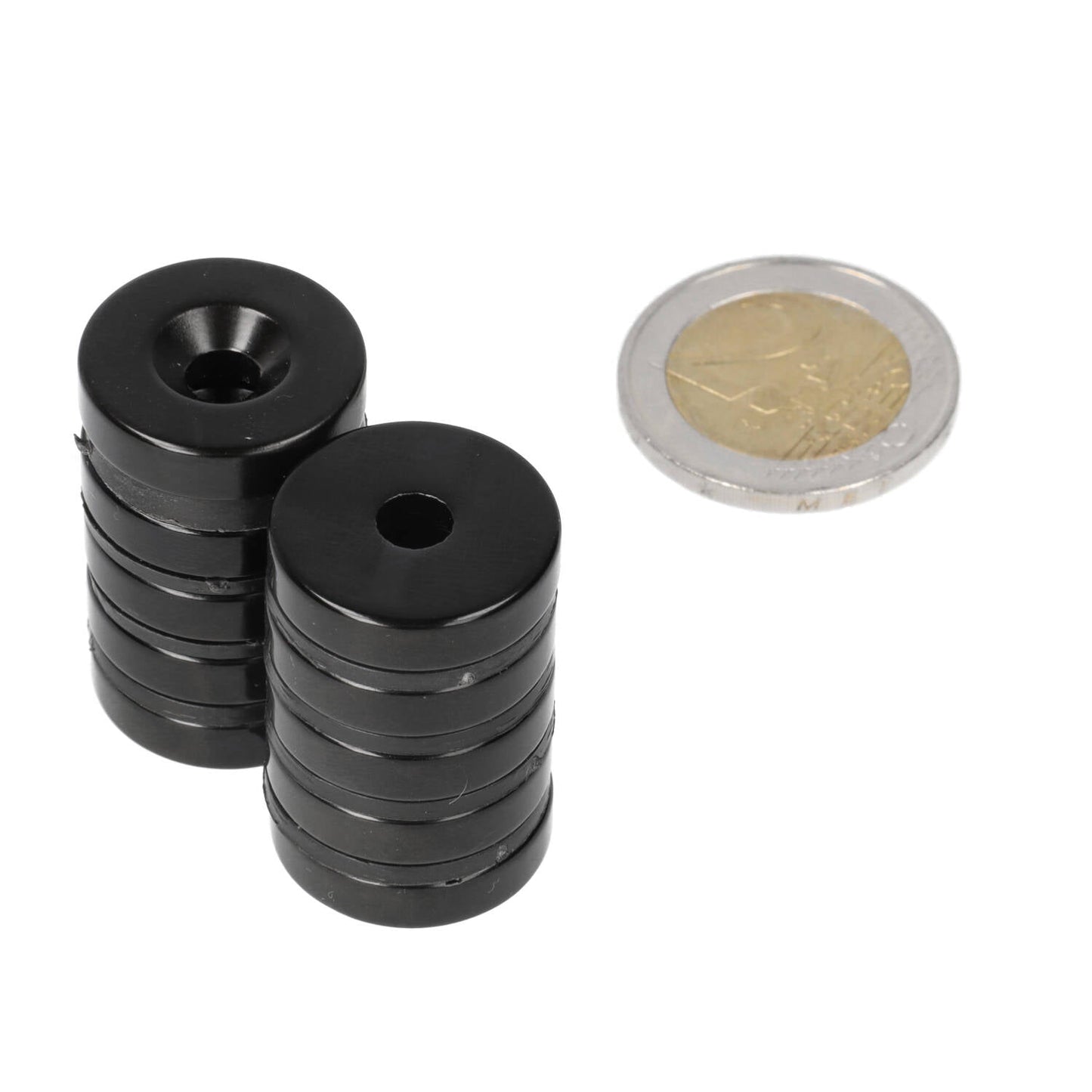

Neodymium Ring Magnet Ø20 x Ø9.8 x 5.1 mm N35 Epoxy with Counterbore South Pole
Regular price
€4,02
Sale price
€4,02
Regular price
Unit price
per
Tax included.
Shipping calculated at checkout.
4853 in stock
Payment methods
- Order before 4 PM for same-day shipping
- Specialist help here for all your questions
- 30-day returns, money-back guarantee
Productveiligheid en importeur
Importeur en verantwoordelijke in de EU:
Magnetenspecialist Import & Export B.V.
Spegelt 92, 5674 CD Nuenen, Nederland
info@magnetenspecialist.nl · +31 40 209 4563
Producent:
Ningbo Bestway Magnet Co., Ltd
No. 298 Bingang Road, Binhai New Area, Fenghua Economic Development Zone, Fenghua, Zhejiang, China
www.bmagmagnet.com
Artikelnummer: ri020x0051x0098x005-N-1-1 · EAN: 8721548503267
Lees de veiligheidsinformatie in de productbeschrijving en op veilig werken met magneten.
Product Information
ri020x0051x0098x005-N-1-1
Technische tekening
| Vorm | Ringmagneet |
| Afmeting | Ø20 x Ø9,8 x 5,1 mm |
| Materiaal | Neodymium (NdFeB) |
| Kwaliteit | N35 |
| Coating | Epoxy |
| Magnetisering | axiaal (polen aan de platte kanten) |
| Houdkracht | approx. 2.1 kg |
| Max. temperatuur | 80 °C |
| Gewicht | ca. 9 g |
Welke platte kant noord is, maakt niet uit: draai de magneet om. Twee magneten trekken elkaar aan als noord tegenover zuid zit.
Neodymium ring magnet Ø20 x Ø9.8 x 5.1 mm, N35 grade with epoxy coating and countersunk hole. Holding force approx. 2.1 kg. Version: South pole.
Specifications
- Dimensions: Ø20 x Ø9.8 x 5.1 mm (outer diameter x hole/countersink diameter x height)
- Grade: N35 (neodymium)
- Coating: epoxy
- Mounting: Ø9.8 mm countersunk hole, tapering to Ø5.1 mm. Suitable for a 5 mm screw with a flat head (metric screw, wood screw, or sheet metal screw).
- Magnetization: axial (poles on the flat sides)
- Pole: South pole
- Holding force: approx. 2.1 kg
- Maximum temperature: 80 °C
What do you use this magnet for?
Suitable for light closures, displays, interior construction, and model making. With the countersunk hole, you can screw the magnet flush into wood, plastic, or metal. Do not overtighten the screw: neodymium is brittle and can crack. The epoxy coating provides extra protection against moisture. This is the South pole version; there is also a version with the opposite pole, so you can make magnets attract or repel each other. Which ring magnet should you choose?
The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force is lower. Read how holding force is determined.
Delivery and returns
Ordered and paid for before 16:00 on working days, it will be shipped the same day if in stock. Free shipping within the Netherlands from €45. Consumers have a 30-day cooling-off period.
Safe use
Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards.
According to the data provided by the manufacturer, this product complies with the European REACH Regulation.
